True® UTV Dual Battery Isolator Connect & Monitor Kit

Price range: $129.95 through $149.00

NEVER Get Stranded Again! Power All Your Accessories Without Draining Your Start Battery.

The True® UTV Dual Battery Isolator Connect & Monitor Kit (UTV-SBI-CM) is a compact, weather-resistant solution for managing dual battery setups in UTVs and ATVs..

  1. Automatic Battery Management with VSR
  2. Real-Time Monitoring w LED Status Indicator & Voltmeter
  3. Built for Harsh Conditions (Compact & Weatherproof Housing)

SKU: UTV-SBI-CM Category:

USED &TRUSTED BY SXS OWNERS

Next-Generation True® UTV Dual Battery Kit with Dual Display Volt Meter



The new updated True® UTV dual battery kit now includes a single meter with dual displays. The new voltage gauge is the same diameter but will measure just over 1” in thread depth so it needs a little more room behind the surface but is also able to be mounted in a much thicker material. Like the original meters, it is a 36mm waterproof/shockproof digital LED voltmeter that allows you to keep real-time track of what’s happening with your charge status on each individual battery. Conveniently True® has included all the necessary peripheral items for installation of the True UTV dual battery kit including those necessary to make sure the meters turn on and off with the ignition.


 The meter can mount anywhere you have a flat surface that can be drilled with a 29mm (1-1/8”+) hole. The True® dual battery isolator kit includes 8 ft. of duplex wire, a relay socket, and all the cable end connectors needed for a complete install. The only connectors you will need is to connect the power and ground wires to the appropriate sources. See the additional pictures or download the instructions for more information.








What Our Customers Are Saying!

Ordered the kit, had a couple of questions about where to mount the isolator and how long the cables are. True’s answered pretty quickly, and I got a tip that helped hide the wiring from splash damage. After using the isolator for several months, it’s still solid as day one.”

Ron McCaulley
California, USA

This kit is a game-changer. I run a sound system and lights off my second battery, and the isolator keeps my starter battery safe every time. The monitor is super helpful—I can see both voltages at a glance.

Brandon R.
Òregon, USA

“Installed on my RZR in under an hour. The instructions were clear, and the volt meter is compact but powerful. I love being able to monitor both batteries in real time.


Jason M.
Utah, USA

Frequently Asked Questions

Does True® offer product warranty?

Yes, True® does offer a product warranty on its UTV battery isolators. While the exact terms may vary by retailer, most listings—including those on Amazon and official distributors—indicate a 30-day refund or replacement policy. This typically covers manufacturing defects or issues encountered during normal use.

Yes. All cables are adhesive-sealed and 100% waterproof, and the voltmeter is shockproof, making it ideal for rugged UTV environments.
Anywhere with a flat surface that can be drilled with a 29mm (1-1/8”) hole. The voltmeter requires a bit more depth than previous models but can be mounted in thicker materials.
Does the isolator draw power when the engine is off?
The True battery isolator (often referring to voltage-sensitive relay types) does draw a very small amount of power when the engine is off — typically in the range of 0.01 to 0.03 amps (10–30 milliamps). This standby current is used to monitor battery voltage so it knows when to reconnect the auxiliary battery once the engine starts.
Check that your system voltage is above the isolator’s cut-in threshold (usually 13.4V). Below that, the isolator won’t connect the batteries or activate the LED indicator.
It’s best to use batteries with similar amp-hour ratings and chemistry. Mixing a 14Ah starter with a 30Ah AGM accessory battery may cause uneven charging or premature wear.

  • Smart Battery Isolation
      Automatically connects batteries when charging voltage is detected and isolates them when voltage drops—protecting your starting battery from accessory drain.
  • PEP® Technology (Power Excursion Protection)
    Designed to handle stator-based charging systems common in UTVs, preventing false triggering and ensuring stable operation.
  • Single Meter Dual Display (SMDD)
    A compact 36mm blue LED voltmeter shows real-time voltage for both batteries simultaneously—no need for two separate gauges.
  • Waterproof & Vibration-Resistant Build
    All cables are fully adhesive-sealed and waterproof. The system is designed to withstand off-road abuse, heat, and moisture.
  • Flexible Mounting Options
    Includes 3M Dual Lock™ fastener, traditional screw mounts, or can be suspended in wiring—ideal for tight UTV dashboards.
  • Complete Wiring Kit
    You get everything needed to install and operate the system.

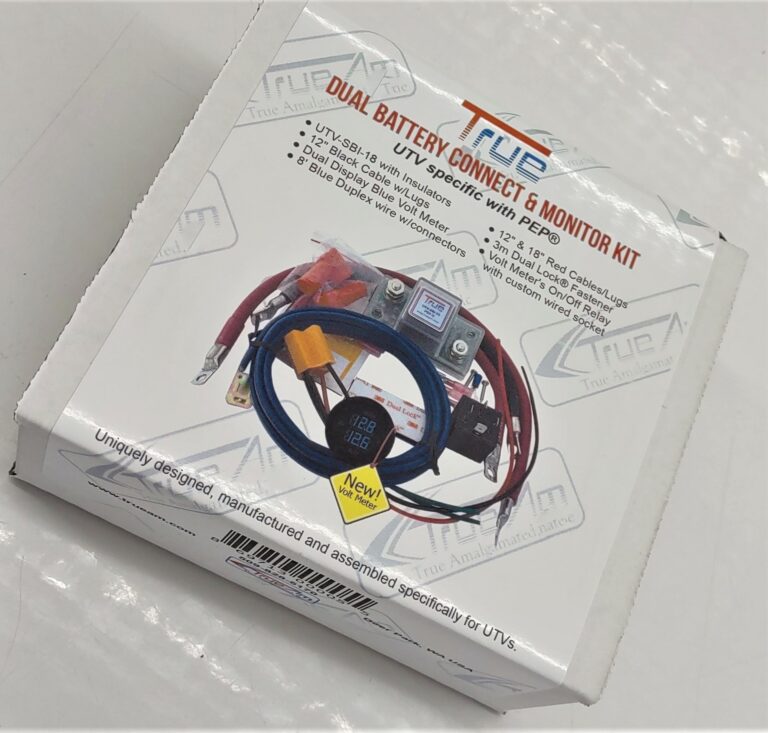

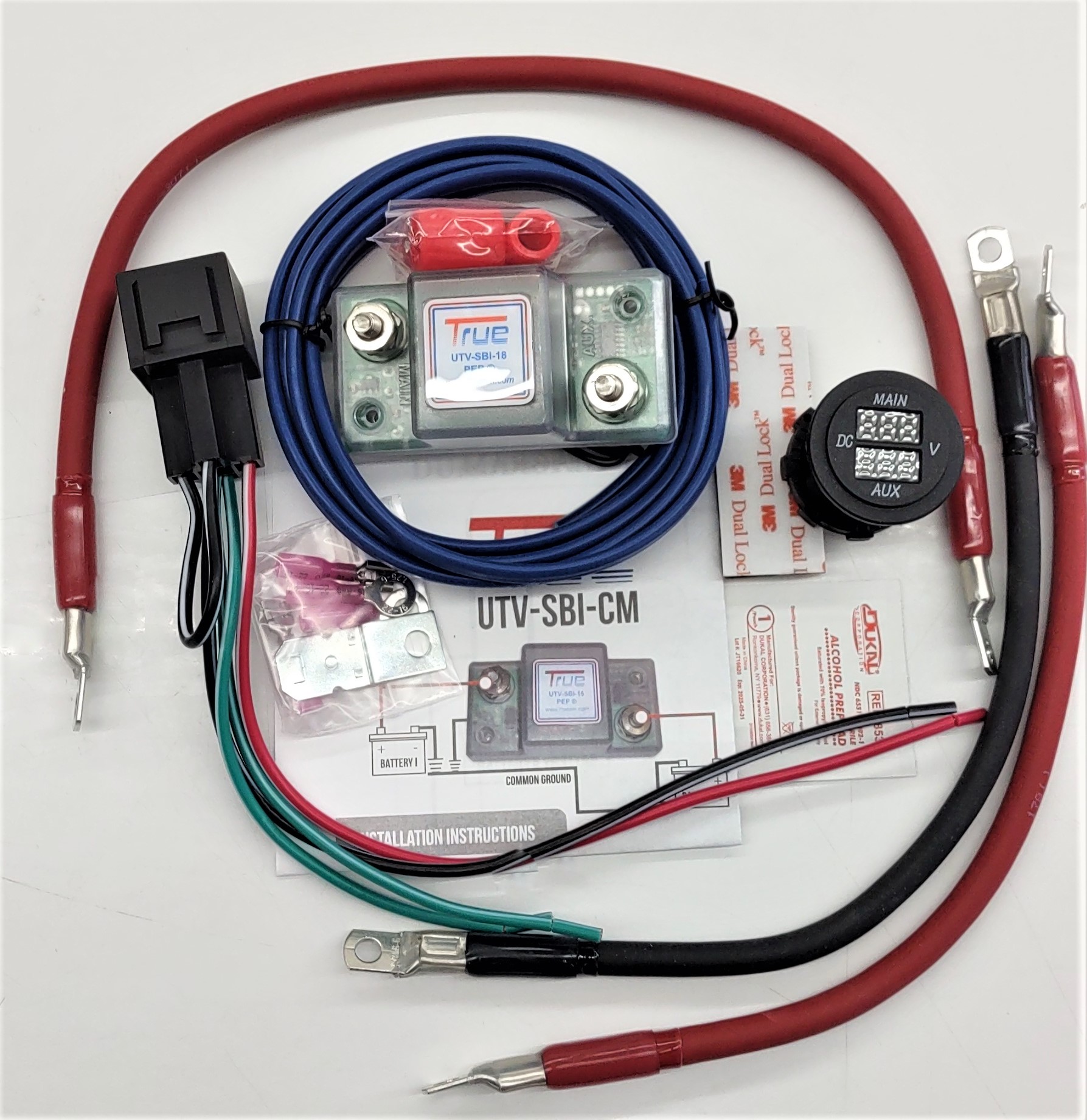

The NEW UTV-SBI-CM Kit includes:

  • 1-UTV-SBI-18 (latest model) with isolator and 3M Dual Lock™
  • 1-12 inch #6 black cable with 6mm (1/4″) lugs
  • 1-12 inch #6 red  main cable with 6mm (1/4″) lugs
  • 1-18 inch #6 red support cable with 6mm (1/4″) lugs
  • NOW featuring a NEW 36mm Single Meter Dual Display blue LED voltmeter
  • True UTV battery isolator  has on/off relay and socket
  • 8ft duplex wire with connectors for meters
  • 12V 14A compact designed
  • Free shipping with full manufacturer warranty
  • Made in the USA
  • Instructions
  • Delivery: USPS Priority Mail



  • Voltage  –  12V or 24V
  • Continuous Current – 100A–140A
  • Activation Threshold –  ~13.2V
  • Disconnect Threshold – ~12.7V
  • IP Rating –  IP66 or higher (varies)
